Transparency in Java 2D

Transparency

In this part of the Java 2D , we will talk about transparency. We will provide some basic definitions and several interesting transparency effects.

Transparency explained

Transparency is the quality of being able to see through a material. The easiest way to understand transparency is to imagine a piece of glass or water. Technically, the rays of light can go through the glass and this way we can see objects behind the glass.
In computer graphics, we can achieve transparency effects using alpha compositing. Alpha compositing is the process of combining an image with a background to create the appearance of partial transparency. The composition process uses an alpha channel. Alpha channel is an 8-bit layer in a graphics file format that is used for expressing translucency (transparency). The extra eight bits per pixel serves as a mask and represents 256 levels of translucency.
(answers.com, wikipedia.org)
The AlphaComposite class is used to work with transparency in Java 2D. It implements the basic alpha compositing rules for combining source and destination pixels to achieve blending and transparency effects with graphics and images. To create an AlphaComposite, you provide two values. The rule designator and the alpha value. The rule specifies how we combine source and destination pixels. Most often it is AlphaComposite.SRC_OVER. The alpha value can range from 0.0f (completely transparent) to 1.0f (completely opaque).

Transparent rectangles

The first example will draw ten rectangles with different levels of transparency.

TransparentRectangles.java

package com.zetcode;


import java.awt.AlphaComposite;
import java.awt.Color;
import java.awt.Graphics;
import java.awt.Graphics2D;
import javax.swing.JFrame;
import javax.swing.JPanel;


public class TransparentRectangles extends JPanel {


    public void paint(Graphics g) {
        super.paint(g);

        Graphics2D g2d = (Graphics2D)g;
        g2d.setColor(Color.BLUE);


        for (int i = 1; i <= 10; i++) {
            g2d.setComposite(AlphaComposite.getInstance(AlphaComposite.SRC_OVER,
                                                        i * 0.1f));
            g2d.fillRect(50 * i, 20, 40, 40);
        }
    }


    public static void main(String[] args) {

        JFrame frame = new JFrame("Transparent Rectangles");
        frame.add(new TransparentRectangles());
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.setSize(590, 120);
        frame.setLocationRelativeTo(null);
        frame.setVisible(true);
    }
}

In our example we draw 10 blue rectangles with various levels of transparency applied.

g2d.setComposite(AlphaComposite.getInstance(AlphaComposite.SRC_OVER, i * 0.1f));

This is the key line of the example. We use the forementioned AlphaComposite.SRC_OVER rule. The alpha value dynamically changes in the for loop.

Figure: Transparent rectangles

Fade out demo

In the next example, we will fade out an image. The image will gradually get more transparent until it is completely invisible.

FadeOut.java

package com.zetcode;

import java.awt.AlphaComposite;
import java.awt.Graphics;

import java.awt.Graphics2D;
import java.awt.Image;

import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;

import javax.swing.ImageIcon;
import javax.swing.JFrame;
import javax.swing.JPanel;
import javax.swing.Timer;

public class FadeOut extends JPanel implements ActionListener {

    Image castle;
    Timer timer;
    private float alpha = 1f;

    public FadeOut() {
        castle = new ImageIcon("bardejov.jpg").getImage();
        timer = new Timer(20, this);
        timer.start();
    }

    public void paint(Graphics g) {
        super.paint(g);

        Graphics2D g2d = (Graphics2D) g;

        g2d.setComposite(AlphaComposite.getInstance(AlphaComposite.SRC_OVER,
                                                    alpha));
        g2d.drawImage(castle, 10, 10, null);

    }

    public static void main(String[] args) {

        JFrame frame = new JFrame("Fade out");
        frame.add(new FadeOut());
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.setSize(280, 240);
        frame.setLocationRelativeTo(null);
        frame.setVisible(true);
    }


    public void actionPerformed(ActionEvent e) {
        alpha += -0.01f;
        if (alpha <= 0) {
            alpha = 0;
            timer.stop();
        }
        repaint();
    }
}

With the AlphaComposite we gradually fade out the image on the panel. The picture comes from Bardejov, a little town in east part of Slovakia.

g2d.setComposite(AlphaComposite.getInstance(AlphaComposite.SRC_OVER, alpha));

Working with transparency.

alpha += -0.01f;

In the actionPerformed() method we gradually decrease the alpha value. Note, that the alpha value must not be negative.

Waiting

In this example, we use transparency effect to create a waiting demo. We will draw 8 lines that will gradually fade out creating an illusion, that a line is moving. Such effects are often used to inform users, that a lengthy task is going on behind the scenes. An example is streaming video over the Internet.

Waiting.java

package com.zetcode;


import java.awt.AlphaComposite;
import java.awt.BasicStroke;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.RenderingHints;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import javax.swing.JFrame;
import javax.swing.JPanel;
import javax.swing.Timer;



public class Waiting extends JPanel implements ActionListener {

    Timer timer;
    int count;

    public Waiting() {

        timer = new Timer(80, this);
        timer.setInitialDelay(190);
        timer.start();
    }


    public void paint(Graphics g) {
        super.paint(g);

        Graphics2D g2d = (Graphics2D) g;
        g2d.setRenderingHint(RenderingHints.KEY_ANTIALIASING,
                            RenderingHints.VALUE_ANTIALIAS_ON);
        g2d.setRenderingHint(RenderingHints.KEY_RENDERING,
                            RenderingHints.VALUE_RENDER_QUALITY);

        final double[][] trs = {
            { 0.0, 0.15, 0.30, 0.5, 0.65, 0.80, 0.9, 1.0 },
            { 1.0, 0.0,  0.15, 0.30, 0.5, 0.65, 0.8, 0.9 },
            { 0.9, 1.0,  0.0,  0.15, 0.3, 0.5, 0.65, 0.8 },
            { 0.8, 0.9,  1.0,  0.0,  0.15, 0.3, 0.5, 0.65},
            { 0.65, 0.8, 0.9,  1.0,  0.0,  0.15, 0.3, 0.5 },
            { 0.5, 0.65, 0.8, 0.9, 1.0,  0.0,  0.15, 0.3 },
            { 0.3, 0.5, 0.65, 0.8, 0.9, 1.0,  0.0,  0.15 },
            { 0.15, 0.3, 0.5, 0.65, 0.8, 0.9, 1.0,  0.0, }
        };

        int width, height;
        width = getWidth();
        height = getHeight();

        g2d.setStroke(new BasicStroke(3, BasicStroke.CAP_ROUND,
                                      BasicStroke.JOIN_ROUND));
        g2d.translate(width/2, height/2);

        for (int i = 0; i < 8; i++) {
            g2d.setComposite(AlphaComposite.getInstance(AlphaComposite.SRC_OVER,
                                                        (float)trs[count%8][i]));

            g2d.rotate(Math.PI/4f);
            g2d.drawLine(0, -10, 0, -40);
        }
    }

     public void actionPerformed(ActionEvent e) {
         repaint();
         count++;
     }

    public static void main(String[] args) {
        JFrame frame = new JFrame("Waiting");
        frame.add(new Waiting());
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.setSize(300, 200);
        frame.setLocationRelativeTo(null);
        frame.setVisible(true);
    }
}

We draw eight lines with eight different alpha values.

final double[][] trs = { ... }

This is a two dimensional array of transparency values used in this demo. There are 8 rows, each for one state. Each of the 8 lines will continuosly use these values.

g2d.setStroke(new BasicStroke(3, BasicStroke.CAP_ROUND, BasicStroke.JOIN_ROUND));

We make the lines a bit thicker, so that they are better visible. We draw the lines with rounded caps.

g2d.rotate(Math.PI/4f);
g2d.drawLine(0, -10, 0, -40);

This code will draw each of the eight lines.

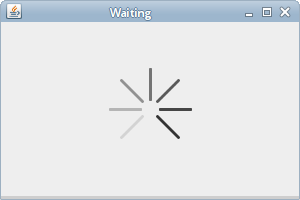

Figure: Waiting

In this part of the Java 2D tutorial, we have talked about transparency.
